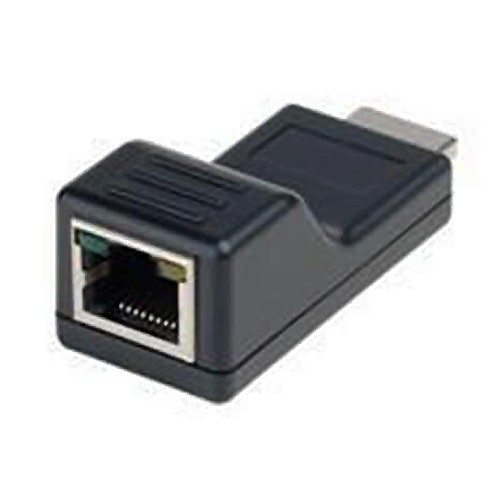

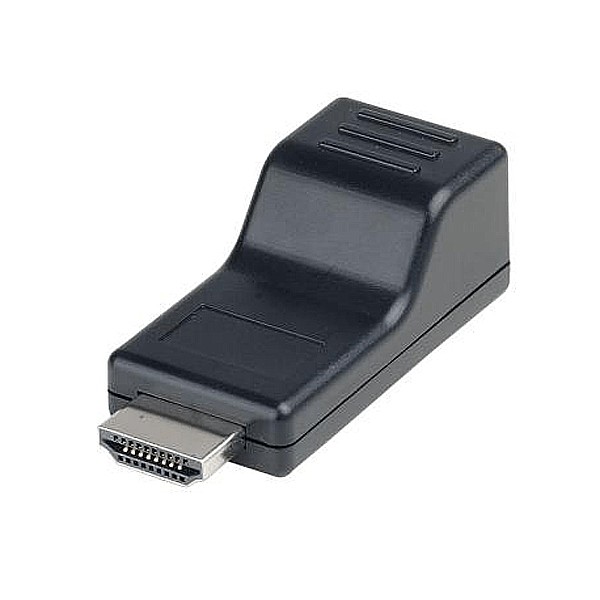

CHE-02K (Finger size HDMI Extender Over a CAT.5e cable)
• Special design to extend HDMI signal only.
• Include a transmitter and a receiver, used in pairs via one CAT5e/6 cable to send HDMI signal.
• Active receiver for high-resolution performance.
• Self-power supply (No need power adapter) and no need for the HDMI patch cord.
• Support high resolution 1080p (1920×1080) at 40M/120feet.
• Support long-distance up to 720p (1280×720) at 70M/210feet.
Made in Taiwan Lab.
Description
• Special design to extend HDMI signal only.
• Include a transmitter and a receiver, used in pairs via one CAT5e/6 cable to send HDMI signal.
• Active receiver for high-resolution performance.
• Self-power supply (No need power adapter) and no need for the HDMI patch cord.
• Support high resolution 1080p (1920×1080) at 40M/120feet.
• Support long-distance up to 720p (1280×720) at 70M/210feet.
Made in Taiwan Lab.
Video Bandwidth – 2.25 Gbps (HDMI 1.3) Resolution for Up to 1920×1200@60hz Input TMDS Video Signal – 1.2 Vp-p Input DDC Signal – 5 Vp-p (TTL) Link Cable Distance – 40M(120 feet) @1920×1200, 70M@1280×720 HDMI Connector – HDMI Type A Link Connector – RJ45 x 1 Power Connector for extra power – Micro USB Power Consumption – 320mA Power Supply: 5V 1Amp (Optional) Temperature Operation: -10 to 65℃, Storage: -20 to 85℃, Humidity: up to 85% Dimension: mm 57.5 × 24 × 20.2 Weight: 20 grams
