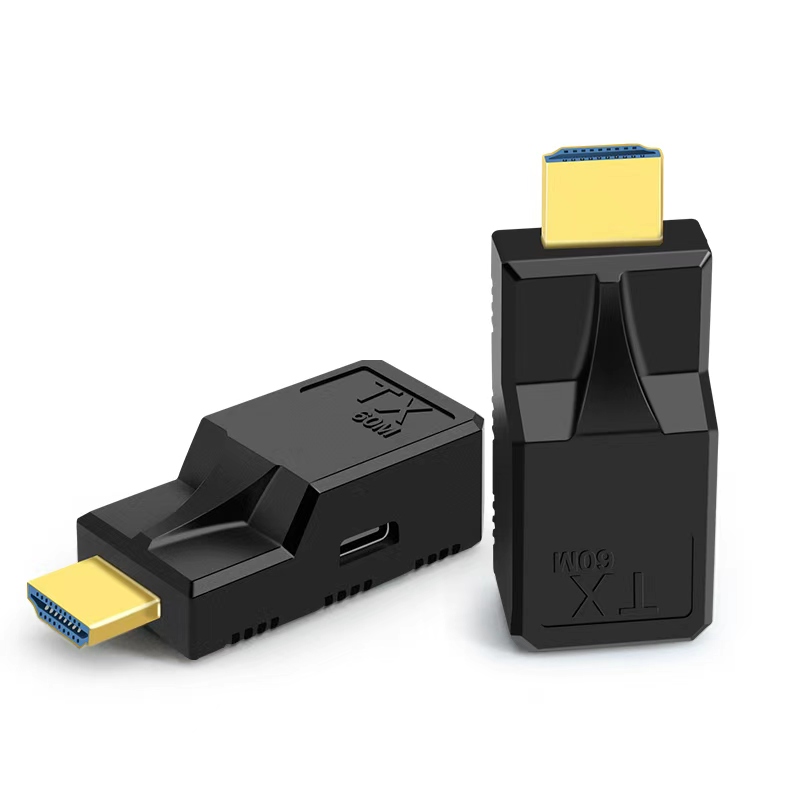

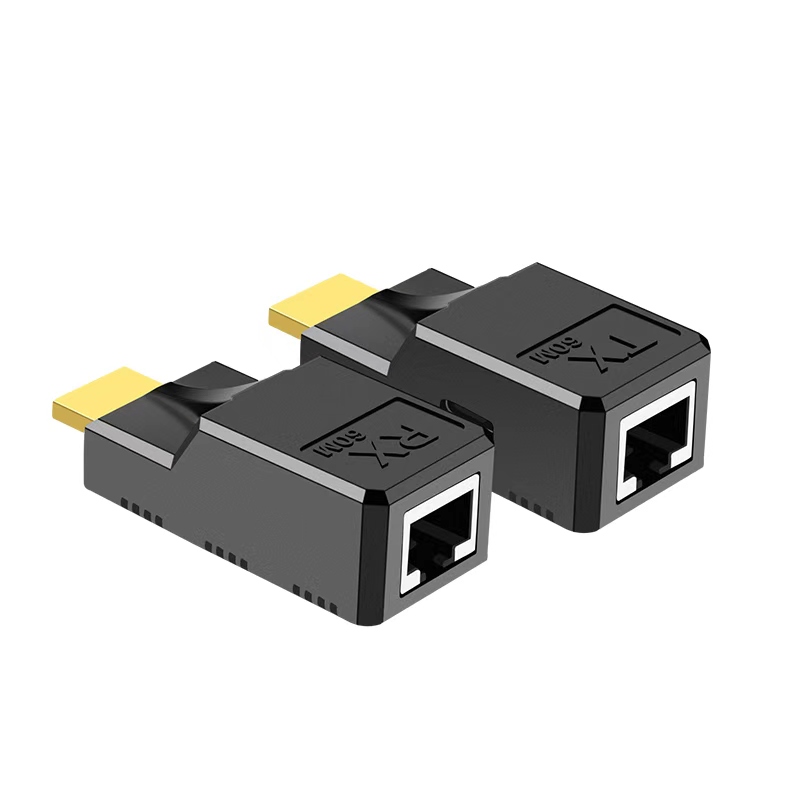

CHE-0301 (Finger size HDMI Extender Over A CAT.5e cable up to 100FT )
• Special design to extend HDMI signal only.

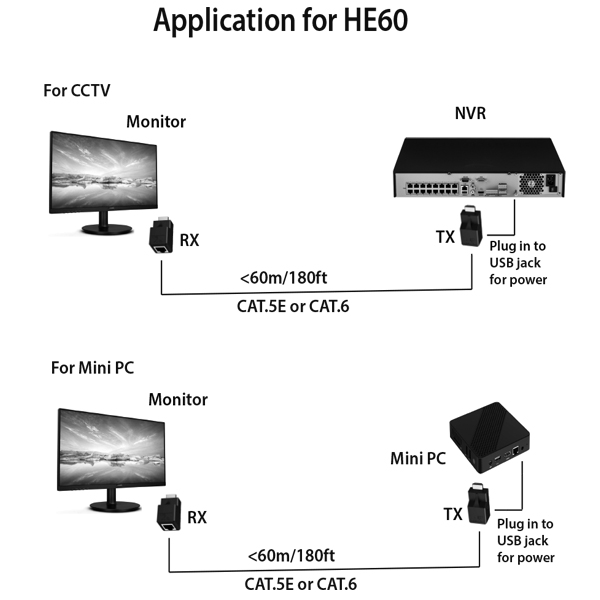

• Include a transmitter and a receiver, used in pairs via one CAT5e/6 cable to send HDMI signal.
• Active receiver for high-resolution performance.
• Self-power supply (No need power adapter) and no need for the HDMI patch cord.
• Support long-distance up to 720p (1280×720) at 35M/100 feet.
Description
• Special design to extend HDMI signal only.
• Include a transmitter and a receiver, used in pairs via one CAT5e/6 cable to send HDMI signal.
• Active receiver for high-resolution performance.
• Self-power supply (No need power adapter) and no need for the HDMI patch cord.
• Support long-distance up to 720p (1280×720) at 35M/100feet.
Video Bandwidth – 2.2 Gbps (HDMI 1.3) Resolution Up to 1920×1080@60hz Input TMDS Video Signal – 1.2 Vp-p Input DDC Signal – 5 Vp-p (TTL) Link Cable Distance – 30M@1280×720 HDMI Connector – HDMI Type A Link Connector – RJ45 x 1 Power Connector for extra power – Micro USB Temperature Operation: -10 to 65℃ Dimension: mm 58 × 25 × 22 Weight: 20 grams
