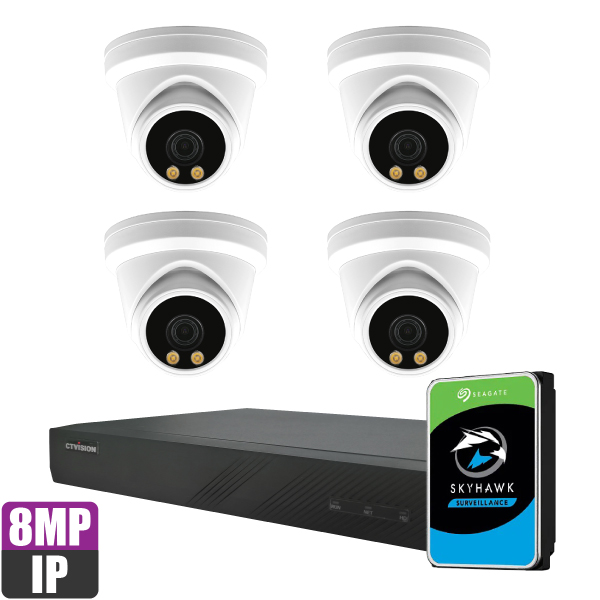

PU-83C442 (CTVISION 4K 4ch NVR + 4 x 8MP ColorVu Audio Turret Camera + 2TB HDD)

FEATURES

  • 4K network video recorder
  • 4 built-in PoE
  • 2TB hard drive pre-installed
  • 8MP ColorVu IP cameras with fixed lens
  • Color night vision and motion detection
  • Built-in mic for audio recording
  • Remote viewing on smartphone and PC
SKU: PU-83C442 Categories: , , ,

Description

  • CTVISION IP system comes with a NVR + 2TB HDD and 4 x 8MP (3840 x 2160) ColorVu IP cameras
  • Professional NVR capable of live view, recording, and playback up to 8MP (3840 x 2160)
  • Plug & Play with 4 Power-over-Ethernet (PoE) interfaces
  • Color night-vision, full-time color
  • Built-in microphone for audio recording
  • 1 HDD for continuous video recording
  • Up to 40 Mbps incoming bandwidth
  • Multiplex (Live/Playback, Recording, Backup, Networking)
  • Various recording features (Normal, schedule, motion, alarm)
  • Remotely via Ethernet connection with CMS and Smartphone free App
  • Junction box optional



Additional information

Weight 15 kg
Dimensions 45 × 40 × 40 cm
Model No. PU-83C442
NVR U31042-P4 (2TB installed)
IP Video Input 4 channels
Audio I/O 1 Input & 1 Output RCA
Video Output 1x HDMI, 1x VGA
Display Resolution VGA: 1920×1080, 1280×1024, 1280 x 720, 1024 x 768

HDMI: 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768

Recording Compression H.265+ /H.265/H.264/H.264+
Resolution 8MP/5MP /4MP / 3MP /1080P /720P /D1/CIF /QCIF
Bit Rate 64Kbps~10Mbps
Playback Resolution 8MP/5MP /4MP / 3MP /1080P /720P /D1/CIF /QCIF
Decoding Capability 1ch@8MP, 1ch@5MP, 2ch@4MP, 4ch@1080P
Playback Mode Smart Playback/Normal/Time Division/ Label/ Event/ Log playback
Backup Mode USB Device/Network
Client App Guard Viewer (iOS / Androïd), Web browser (IE 7+ / Safari / Chrome / Firefox)
Incoming Bandwidth 40Mbps
Outgoing Bandwidth 40Mbps
Ethernet 4x 10/100 Base T/TX PoE (RJ-45) + 1x 10/100/1000 Base T/TX(RJ-45)
Network Protocol DDNS, DHCP, DNS, IPv4/IPv6, iSCSI, NFS, NTP, PPPoE, RTP,SADP, SMTP, SNMP, TCP/IP, UDP
Smart Phone iOS(iPhone, iPad), Android(Phone, Pad)
Hard Disk Drive 1 SATA interface
Capacity Up to 10TB capacity for a HDD
POE Interface 4 independent 10 /100 Mbps PoE Ethernet interfaces
USB Interface 2 × USB 2.0
Power Supply 100 ~ 240 Vac, 50/60Hz
Power Consumption <65W
Working Environment 0°C~+55°C / 10%~90%RH



Model IP-23C86F28
Image Sensor 1/2.8″ 8MP Sony IMX415 CMOS
Effective Pixels 3840 (H) × 2160 (V) approx. 8.0M pixels
Electronic Shutter AUTO, AUTO, 1/25s ~ 1/100000s
Min. Illumination 0.05Lux@F1.2(AGC ON), 0Lux IR on
Day/Night Auto/Color/(B/W)/Timing
WDR Digital WDR
White Balance Auto/Manual
AGC/BLC Support
DNR 2D/3D DNR
Built-in Mic Yes
Other functions Motion Detection, Privacy Mask, Flip, Mirror
Encode
Video Standard H.264/H.265
Video Resolution 18fps@8MP(3840×2160),

30fps@5MP(2592×1944)/4MP/3MP/1080P/720P

Video Bitrate 11 Kbps ~ 10 Mbps
Audio Standard G.711-u
Illumination
LED Spotlight 3000K Warm White LED x2
Illumination Distance 25M (80ft)
Lens
Fixed focal lens 2.8mm / F1.2 board lens
Network Services
Protocol RTSP/DHCP/NTP/DST/FTP/SMTP
P2P Yes
Web IE , Firefox, etc.
Media CMS, Android, iOS
ONVIF 17.06 compatible
General
Network port 1-RJ45, 100Mbps, PoE
Power Supply 12 VDC ± 10% or PoE
Water proof IP-66 water resistant standard
Power Consumption < 8.5 W
Operating Temp. -30℃-(+60)℃, 10%-90%RH
