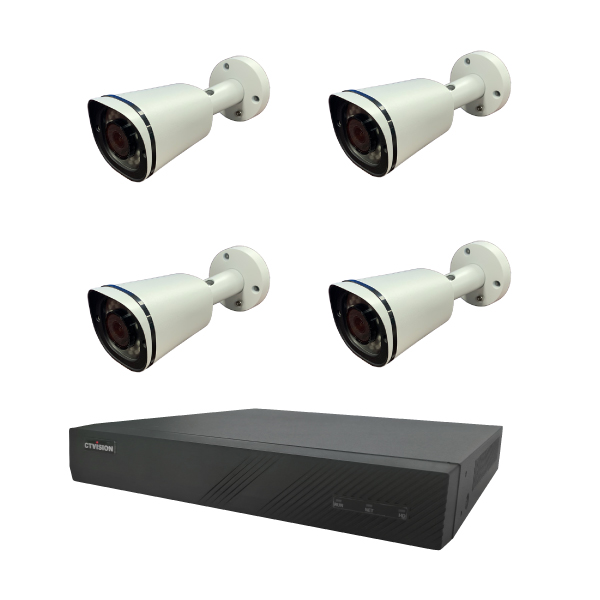

PU-5644-2T (CTVISION 4ch NVR + 4 x 5MP Compact Bullet IR Camera + 2TB HDD)

Description

CTVISION IP system comes with a NVR + 2TB HDD and 4 x 5MP (2560 x 1920) IP camera
Professional NVR capable of live view, recording, and playback up to 6MP (2560 x 1920)
Plug & Play with 4 Power-over-Ethernet (PoE) interfaces
1 HDD for continuous video recording
Up to 40 Mbps incoming bandwidth
Multiplex (Live/Playback, Recording, Backup, Networking)
Various recording features (Normal, schedule, motion, alarm)
Remotely via Ethernet connection with CMS and Smartphone free App
Junction box optional

Additional information

Weight	15 kg
Dimensions	45 × 40 × 40 cm

Model No.	PU-56442
NVR	U31042L-P4 (2TB installed)
IP Video Input	4 channels
Audio I/O	1 Input & 1 Output RCA
Video Output	1x HDMI, 1x VGA
Display Resolution	Up to 1080P on HDMI, VGA: 1920×1080, 1280×1024
Recording Compression	H.265+ /H.265/H.264/H.264+
Resolution	6MP/5MP /4MP / 3MP /1080P /720P /D1/CIF /QCIF
Bit Rate	64Kbps~10Mbps
Playback Resolution	6MP / 5MP /4MP / 3MP /1080P /720P /D1/CIF /QCIF
Decoding Capability	1ch@6MP , 4ch@1080P
Playback Mode	Smart Playback/Normal/Time Division/ Label/ Event/ Log playback
Backup Mode	USB Device/Network
Client App	Guard Viewer (iOS / Androïd), Web browser (IE 7+ / Safari / Chrome / Firefox)
Incoming Bandwidth	40Mbps
Outgoing Bandwidth	40Mbps
Ethernet	4x 10/100 Base T/TX PoE (RJ-45) + 1x 10/100/1000 Base T/TX(RJ-45)
Network Protocol	DDNS, DHCP, DNS, IPv4/IPv6, iSCSI, NFS, NTP, PPPoE, RTP,SADP, SMTP, SNMP, TCP/IP, UDP
Smart Phone	IOS(iPhone, iPad), Android(Phone, Pad)
Hard Disk Drive	1 SATA interface
Capacity	Up to 8TB capacity for a HDD
POE Interface	4 independent 10 /100 Mbps PoE Ethernet interfaces
USB Interface	2 × USB 2.0
Power Supply	100 ~ 240 Vac, 50/60Hz
Power Consumption	<65W
Working Environment	0°C~+55°C / 10%~90%RH

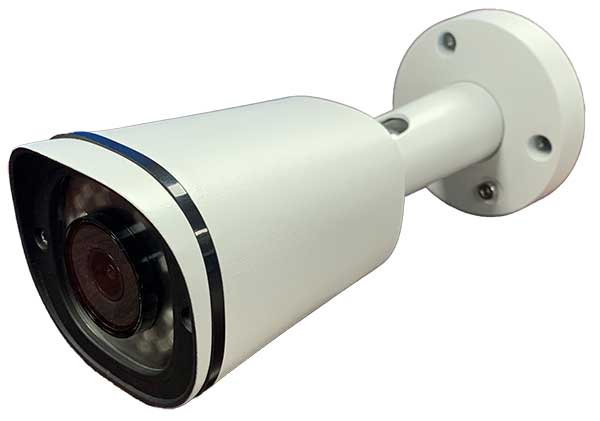

Camera	IP-2652F28
Type	Outdoor metal bullet IP network camera
Min. Illumination	0.1 lux(Color), 0lux(IR on)
Lens	2.8mm Fixed focal lens
IR	16µ×18pcs array LED
IR Range	>30m (100ft)
Smart IR	Support
Shutter Time	Auto/Manual, 1/3~1/10000s
Day/Night	IR cut filter with auto switch
Wide Dynamic Range	DWDR
Digital noise reduction	2D/3D DNR
Video Compression	H.264/H.264+/H.265/H.265+
H.264 Codec profile	Base/Main/High profile
H.265 Codec profile	Main profile
Video Bit Rate	11 Kbps~10 Mbps
Triple Streams	Support
Max. Image Resolution	5MP (2592*1944)
Frame Rate	50Hz: 20fps 5MP(2592 × 1944)
	25fps 4MP(2304 × 1728)
	25fps 3MP(2048 × 1536),25fps 1080P(1920 × 1080)
	25fps 960P(1280 × 960),
	60Hz: 20fps 5MP(2592 × 1944)
	25fps 4MP(2560 × 1440),30fps 4MP(2304 × 1728)
	30fps 3MP(2048 × 1536),30fps 1080P(1920 × 1080)
	30fps 960P(1280 × 960),30fps 720P(1280 × 720)
Sub Stream	50Hz:25fps 720P(1280 × 720)
	25fps D1(704 × 576),25fps CIF(352 × 288)
	60Hz:30fps 720P(1280 × 720)
	30fps D1(704 × 480),30fps CIF(352 × 240)
Third Stream	50Hz:25fps CIF(352 × 288)
Third Stream	60Hz:30fps CIF(352 × 240)
Image Setting	Brightness/Contrast/Saturation/Hue/Sharpness
BLC	Support
HLC	Support
ROI	Support
Defog	Support
Network Storage	NAS(NFS/CIFS)
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP,
	DHCP, DNS, DDNS, RTP, RTSP,
	RTCP, NTP, IGMP, UPnP, SMTP,
	UPnP™, P2P, Bonjour
Event	Motion Detection, Video Shelter
ONVIF	17.06 compatible
Security	User authentication,IP address filtering,Video mask
Mobile Surveillance	iPhone, iPad,Android devices
Communication interface	1 RJ45 10M / 100M Ethernet Port
Operating Conditions	-30°C ~ 60°C (-22°F ~ 140°F)
Operating Conditions	Humidity 95% or less (non-condensing)
Power Supply	DC12V ± 10%
POE Supply	PoE (802.3af)
Power Consumption	MAX. 8.5W
Weather Proof	IP66
