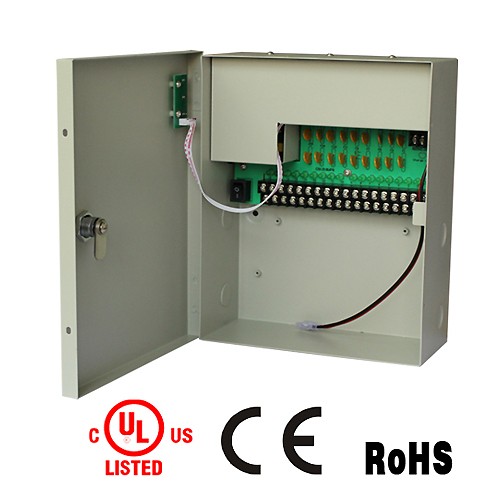

PS-12VDC10A9P-UL (Power Box 12V 10Amp 9P with UPS Charger)
Use of efficient environmental protection switching power supply circuit frame
Optimization of the shape and structure to facilitate the construction systems
Small ripple & noise – Video output signal more stable, clearly image
CSA UL Listed Product
Split output by-pass failure to protect other equipment to work
Power Protection Output over-voltage protection, over-current protection, short circuit protection
Input: AC120V, 60Hz, 2.5A
Output voltage: 12V ± 15% DC
Output Current: 10 Amp
Output Channel: 9 Channels
Over-current Protection: 6A ± 5%
Ripple & Noise: ≤ 100mV
Efficiency: ≥80%
Charge Voltage: 13.5V
Charge Current (Max.) 1 Amp
Battery Under-Voltage Protection: 9V
Description
Use of efficient environmental protection switching power supply circuit frame
Optimization of the shape and structure to facilitate the construction systems
Small ripple & noise – Video output signal more stable, clearly image
CSA UL Listed Product
Split output by-pass failure to protect other equipment to work
Power Protection Output over-voltage protection, over-current protection, short circuit protection
Input: AC120V, 60Hz, 2.5A
Output voltage: 12V ± 15% DC
Output Current: 10 Amp
Output Channel: 9 Channels
Over-current Protection: 6A ± 5%
Ripple & Noise: ≤ 100mV
Efficiency: ≥80%
Charge Voltage: 13.5V
Charge Current (Max.) 1 Amp
Battery Under-Voltage Protection: 9V
