HE03T-1 (IP Network HDMI Extender for Transmitter, Up to 256 Receivers)

Model #: HE03T-1

Features:
Extend HDMI signals over one CAT5e/CAT6 cable up to 256 receivers in the same network gateway.

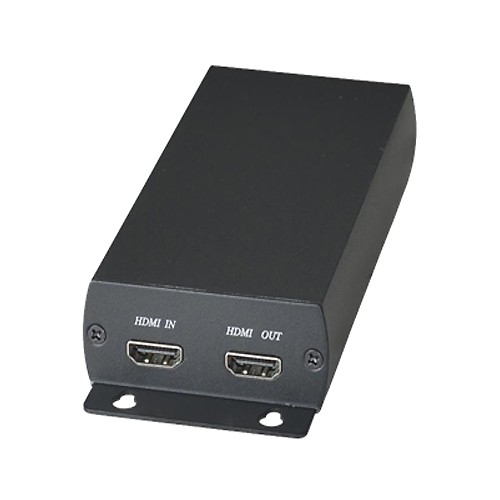

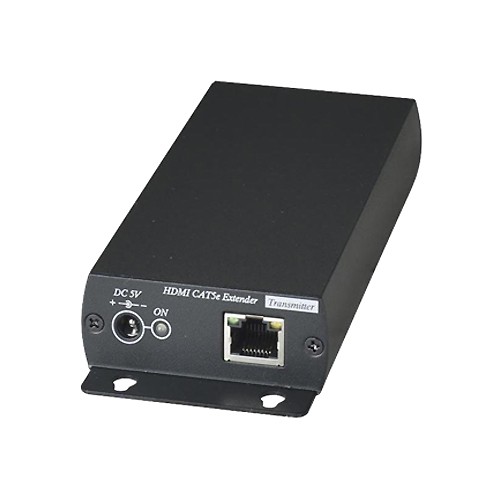

Dual Output: 1 x HDMI loop output for local monitor, plus 1 CAT5e RJ45 output for remote unit.
Supports resolutions up to 1080p Full HD.
Transmission range up to 150M over CAT5e, 160M over CAT6.
HDMI 1.3b and HDCP compliant.
Perfect for remote machines and security monitoring systems, digital signage applications.
ITEM NO.
HE-03T-1
HE-03R-1
Support Resolution
1920 x 1200p 32bpp@ 60 Hz
Transmission Distance
CAT.5e：150M / CAT.6：160M (Max)
HDMI Connector
HDMI Type A x 2
HDMI Type A x 1
Link Connector
RJ45 x 1
Power Supply
DC 5V 2A
Power Consumption1.2A 0.7A
Temperature
Operation:-20 to 60℃, Storage: -20 TO 85℃, Humidity: up to 95%
Dimensions mm67 x170 x 27 67 x 130 x 27
Weight g 250 195
