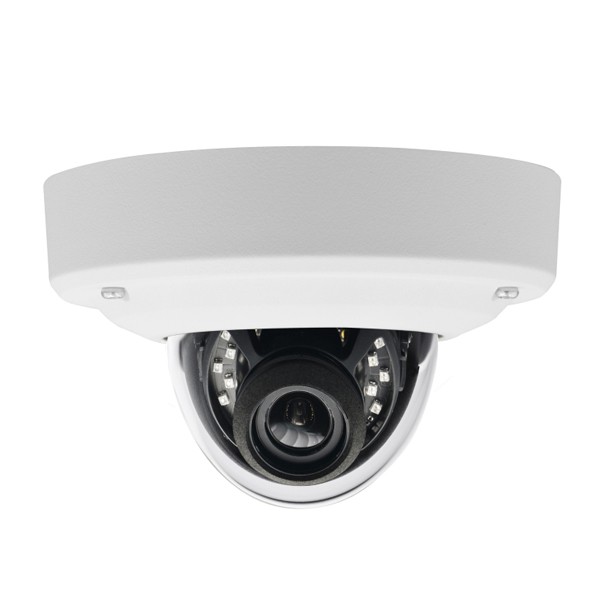

IP-2455F28 ( 5MP Outdoor/Indoor Low-profile IP Dome Camera with audio)

IP-2455F28 ( 5MP Outdoor/Indoor Low-profile IP Dome Camera with audio)

Features:

  • Fully Plug & Play for CTvision, Hikvision and Unv NVR
  • Up to 5 megapixels resolution (2592 x 1944)
  • Built-in 2.8mm/F1.2 wide angle fixed board lens
  • Built-in microphone (audio)
  • Built-in Power-over-Ethernet (PoE) interfaces
  • Multi web browser, PC Client, mobile APP remote access
  • Low-profile (2.5″ high) dome camera, outdoor weather-proof IP66 grade
SKU: IP-2455F28 Categories: ,

Description

  • Fully Plug & Play for CTvision, Hikvision and Unv NVR
  • H.265 / H.264 video formats
  • Built-in microphone (audio)
  • Up to 5 megapixels resolution (2592 x 1944)
  • Up to 20fps@5MP (2592 x 1944), 30fps@4MP (2560 x 1440)
  • Built-in 2.8mm/F1.2 wide angle fixed board lens
  • 13 Array IR Leds , IR distance up to 50 feet (15 M)
  • Low illumination 0.1Lux, Day/Night (ICR), AWB, IR-CUT
  • D-WDR, Motion Detection, Privacy Mask, Mirror, Flip
  • Built-in Power-over-Ethernet (PoE) interfaces
  • RTSP and Onvif 17.06 compatible
  • Easy-to-use P2P Cloud service
  • Multi web browser, PC Client, mobile APP remote access
  • Low-profile (2.5″ high) dome camera, outdoor weather-proof IP66 grade

Additional information

Weight 0.7 kg
Dimensions 13.5 × 13.5 × 13 cm
Model IP-2455F28
Image Sensor 1/2.8″ Sony IMX335 CMOS
Effective Pixels 2592(H)×1944 (V)
Electronic Shutter AUTO, AUTO, 1/25s ~ 1/100000s
Min. Illumination 0.01Lux@F1.2(AGC ON), 0Lux IR on
Day/Night Auto/Color/(B/W)/Timing
WDR Digital WDR
White Balance Auto/Manual
AGC/BLC Support
DNR 2D/3D DNR
Other function Motion Detection, Privacy Mask, Flip, Mirror
Encode
Video Standard H.264/H.265
Video Resolution 20fps@5MP(2592×1944). 30fps@4MP/3MP/1080P/720P
Video Bitrates MainStream:20fps@5MP(2592×1944)Sub stream:720×480/VGA(640×480)/360P/QVGA@30fps
Audio Standard 512Kbps – 12Mbps, VBR/CBR
IR LED
IR Led 13PCS SMD IR LEDs
IR Distance 45 feet or 15 meters
Lens
Fixed focal lens 2.8mm / F1.2 board lens
Network Services
Protocol RTSP/DHCP/NTP/DST/FTP/SMTP
P2P Yes
Web IE , Firefox, etc.
Media CMS, Android, iOS
ONVIF 17.06 compatible
General
Network port 1-RJ45, 100Mbps, PoE
Power Supply 12 VDC ± 10% or PoE
Water proof IP-66 water-resistant standard
Power Consumption < 8.5 W
Operating Temp. -30℃-(+60)℃, 10%-90%RH
