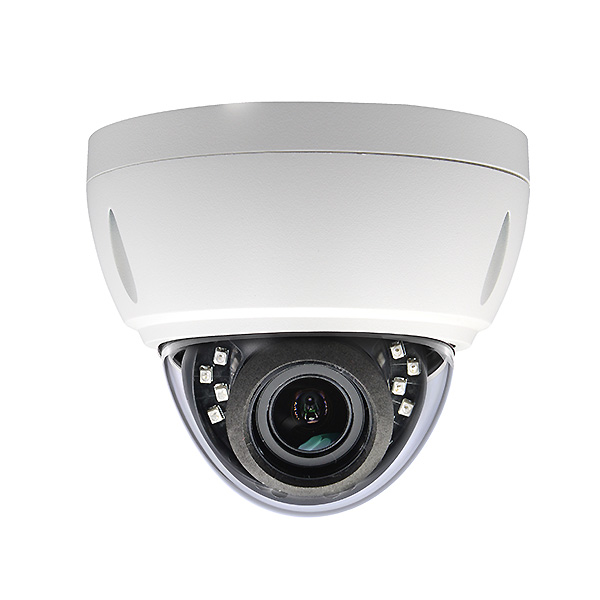

IP-2255AZS (5MP Outdoor/Indoor Vandal Dome Motorized auto focus Lens IP Camera)

Features:

  • Fully Plug & Play for CTvision, Hikvision and Unv NVR
  • H.265 / H.264 video formats
  • Up to 5 megapixels resolution (2592*1944)
  • Built-in Motorized Vari-focal auto focus lens 2.8mm to 12mm
  • Built-in Power-over-Ethernet (PoE) interfaces
  • Compact dome camera, outdoor weather-proof IP66 grade
SKU: IP-2255AZS Categories: ,

Description

  • Fully Plug & Play for CTvision, Hikvision and Unv NVR
  • H.265 / H.264 video formats
  • Up to 5 megapixels resolution (2592*1944)
  • Built-in Motorized Vari-focal auto focus lens 2.8mm to 12mm
  • 20fps@5MP (2592*1944), 30fps@4MP (2560*1440)
  • 18 SMD IR Leds , IR distance up to 60 feet (20 M)
  • Low illumination 0.1Lux, Day/Night (ICR), AWB, IR-CUT
  • D-WDR, Motion Detection, Privacy Mask, Mirror, Flip
  • Built-in Power-over-Ethernet (PoE) interfaces
  • RTSP and Onvif 17.06 compatible
  • Easy-to-use P2P Cloud service
  • Multi web browser, PC Client, mobile APP remote access
  • Compact dome camera, outdoor weather-proof IP66 grade
  • Lightning protection 4000V
  • Junction box optional
Model IP-2255AZS
Camera
Image Sensor 1/2.8″ Sony IMX335 CMOS
Effective Pixels 2592(H)×1944 (V)
Electronic Shutter AUTO, 1/25s ~ 1/100000s
Min. Illumination 0.1Lux@F1.2(AGC ON), 0Lux IR on
Day/Night Auto/Color/(B/W)/Timing
WDR Digital WDR
White Balance Auto
Other AGC,2/3 DNR,Motion Detection, Privacy Mask, Mirror, Flip
Encode
Video Standard H.265/H.264
Video Resolution MainStream:20fps@5MP(2592×1944),30fps@4MP/3MP,30fps@1080P/720P
Sub stream: D1/VGA(640×480)/360P/QVGA@25fps
Video Bitrates 512Kbps – 6Mbps, VBR/CBR
Audio Standard G.711-u/G.711-a
IR Led
IR Led 18 Array IR Leds
IR Distance 60 feet or 20 meters
Lens
Motorized lens 2.8mm – 12mm / F1.2 Motorized Vari-focal auto focus lens
Network Services
Protocol RTSP/FTP/DHCP/DDNS/NTP/SMTP/NFS
P2P Yes
Web IE , firefox 32bit ESR
Media CMS, Android, IOS
ONVIF 17.06 compatible
General
Network Port 1-RJ45, 100Mbps, POE optional
Power Supply 12 VDC ± 10% or PoE
Power Consumption < 8.5 W
Operating Temp. -30℃-(+60)℃, 10%-90%RH
